brand models* repairs fotos

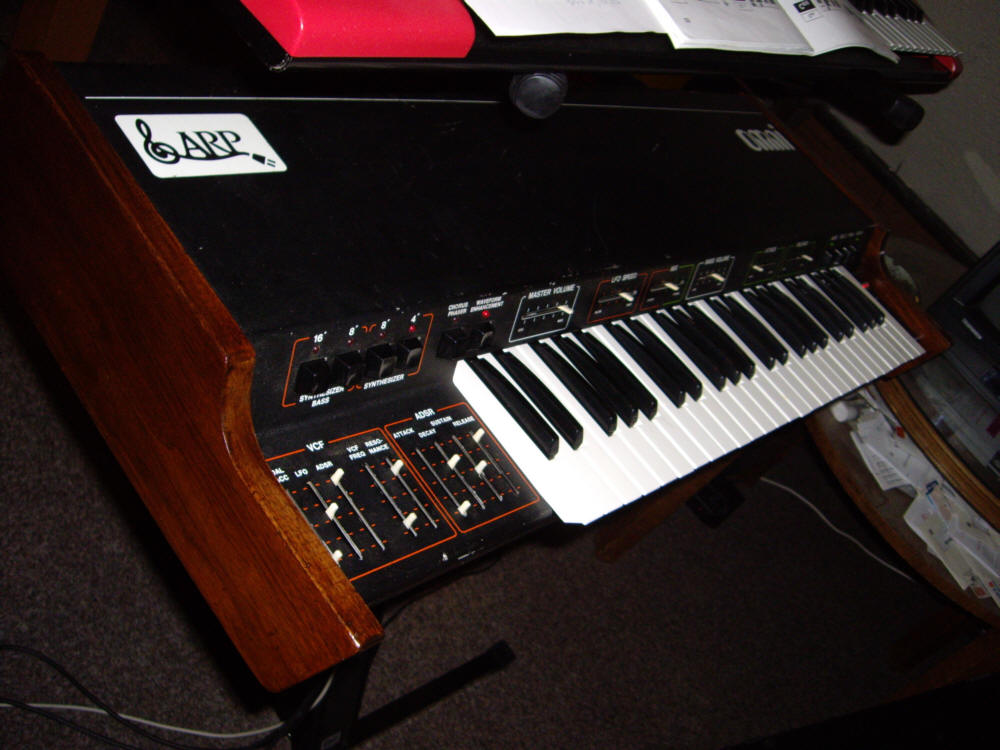

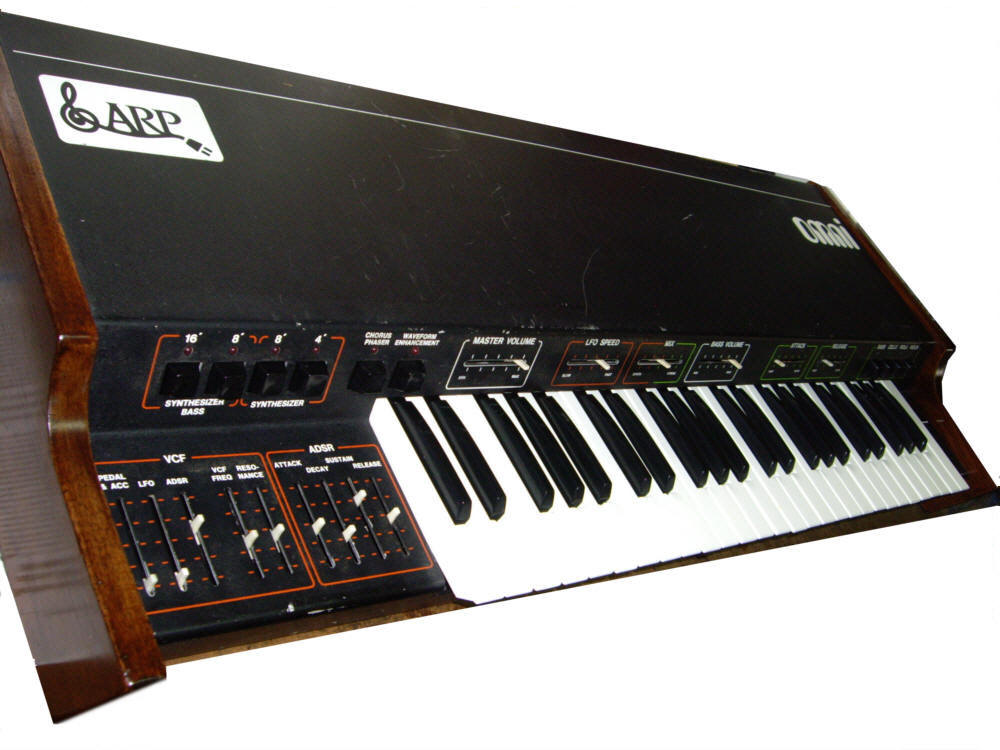

ARP Omni   ARP OMNI Mark I

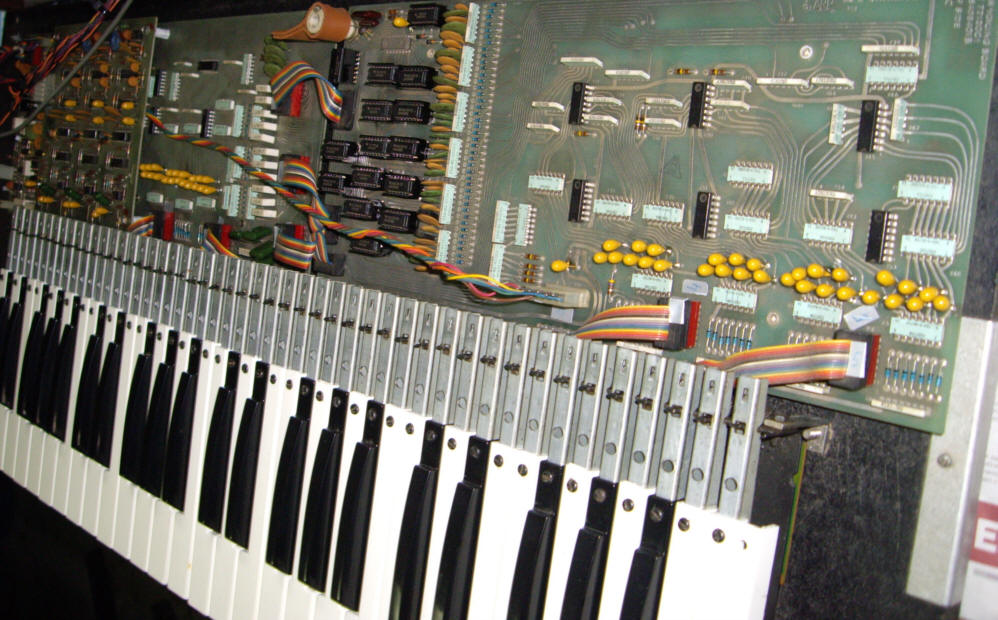

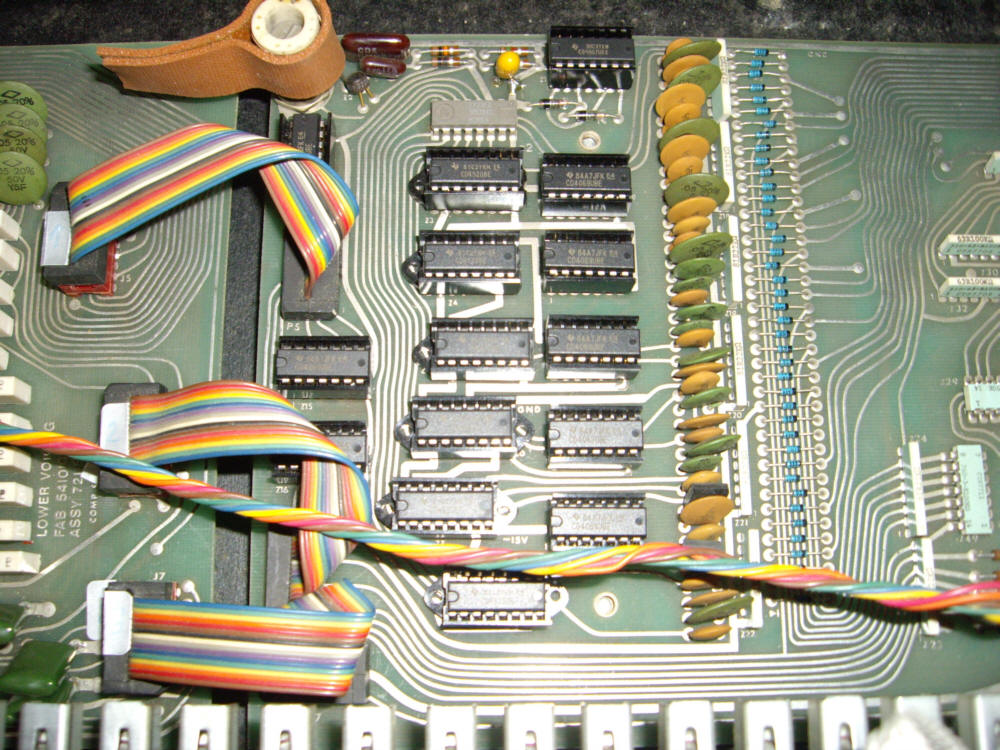

*other instruments on request Arp Omni is a polyphon analog synth with string orchestra sounds. It is devided in 3 sections - strings, synthesizer and bass-synth. Repair of the keyboard-ciruits, replace tantal condensators for determining the release time of every key,  replacing the hard to getable IC TDA0470

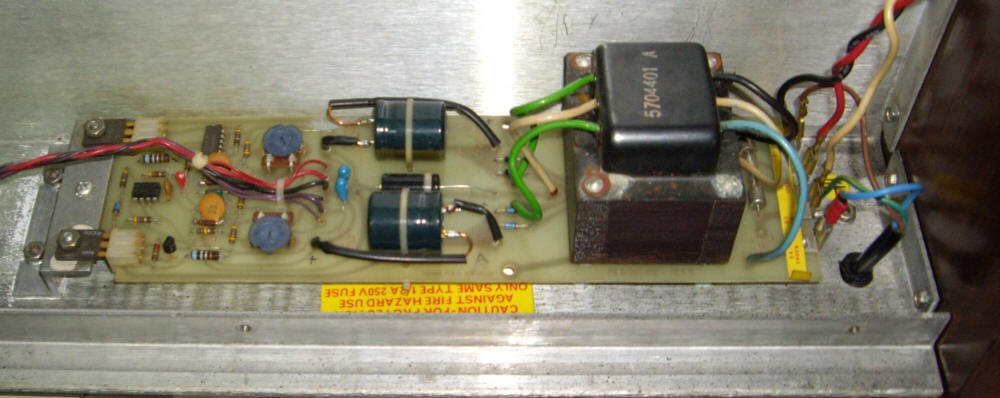

  Cleaning the not replacable faders. Cleaning contacts of the keyboard. Replacing the
elyte condensators of the PSU.
    Further repairs, which are mostly in conection with bad ICs, but unlike the TDA0470 are still standard and able to find.

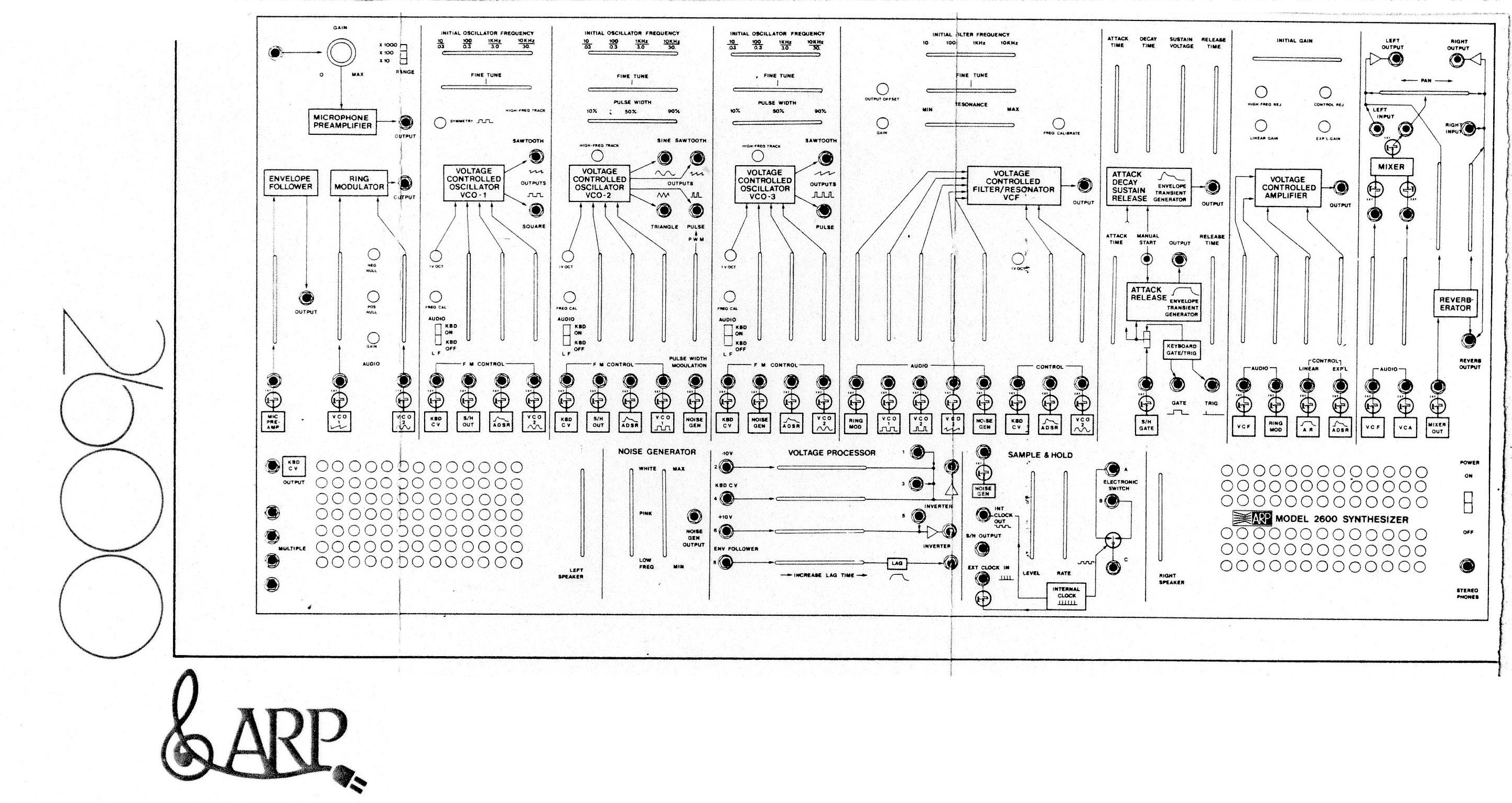

ARP 2600


A portable 3 VCO semi-modular synth with a very specific sound.
